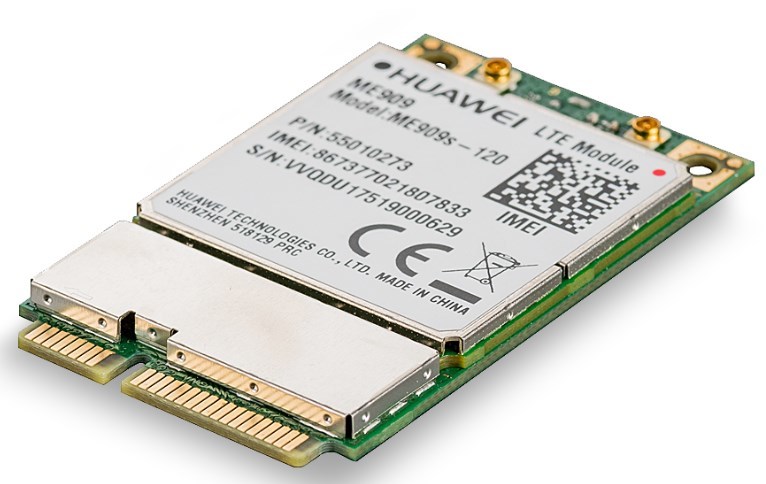

Модуль LTE Huawei ME909s-120 Mini PCI-e 3G/4G

• LTE (FDD) B1/B2/B3/B5/B7/B8/B20, all bands with diversity
• DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8, all bands with diversity
• EDGE/GPRS/GSM 1900/1800/900/850 MHz
• MIMO
  LTE: DL 2*2 MIMO
  HSPA+/DC-HSPA+: DL 2*2 MIMO
• Output Power
  LTE: +23dBm (3GPP TS 36.101 R8 Class 3)
  WCDMA/HSPA+: +24dBm (Power Class 3)
  EDGE 1900/1800MHz: +26dBm (Power Class E2)
  EDGE 900/850MHz: +27dBm (Power Class E2)
  GSM/GPRS 1900/1800MHz: +30dBm (Power Class 1)
  GSM/GPRS 900/850MHz: +33dBm (Power Class 4)
• USIM (Class B and Class C)
• Power supply
  3.2 V to 4.2V (typical: 3.8V)
• Temperature range
  Operational: -30°C to 70°C
  Extended: -40°C to 85°C*
• Dimensions: 51 mm x 30.4 mm x 3.52 mm
• Weight: approx. 12g
• AT commands
  3GPP TS 27.007 and 27.005
  Huawei extended AT command
• OS: Linux, Android, WinCE, Windows 8/10

Голосовые функции

• DTMF
• PCM voice

Дополнительные услуги

• Call forwarding / hold / waiting
• USSD

Передача данных

• GPRS: DL 85.6 kbps/UL 85.6 kbps
• EDGE: DL 236.8 kbps/UL 236.8 kbps
• WCDMA CS: DL 64 kbps/UL 64 kbps
• WCDMA PS: DL 384 kbps/UL 384 kbps
• HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
• DC-HSPA+: DL 43.2 Mbps/UL 5.76 Mbps
• LTE FDD: DL 150 Mbps/UL 50 Mbps @20M BW cat4

СМС

• MO / MT Text and PDU mode

Дополнительные свойства

• CDC-ECM
• FOTA
• Firmware Update via USB
• Embedded UDP/TCP/FTP(s)/HTTP(s) stack
• High-speed UART
• CMUX
• Sleep mode

Интерфейсы

• Mini PCIe interface
• Antenna interface
• USB 2.0 High speed
• PCM Voice
• SIM Card
• LED
• Power supply
• Reset
